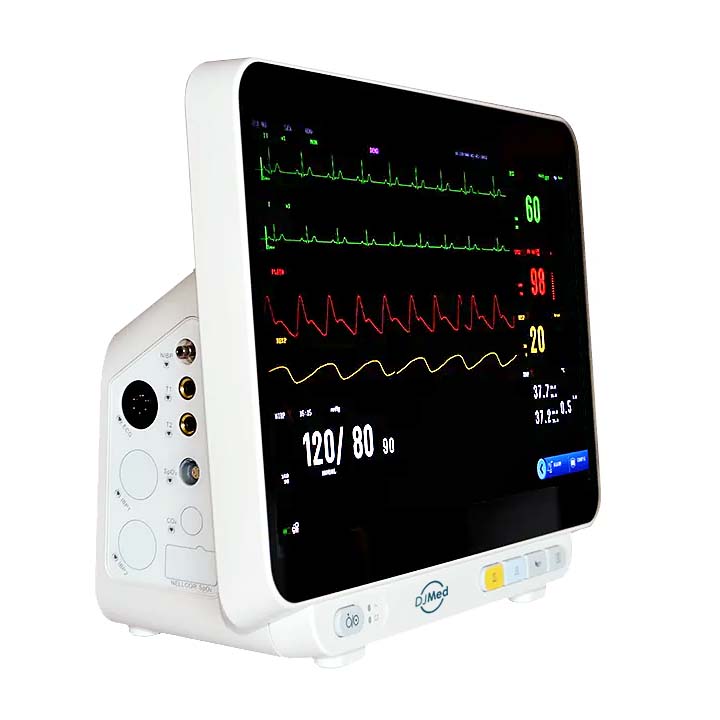

8000D Patient Monitor with Touch Screen

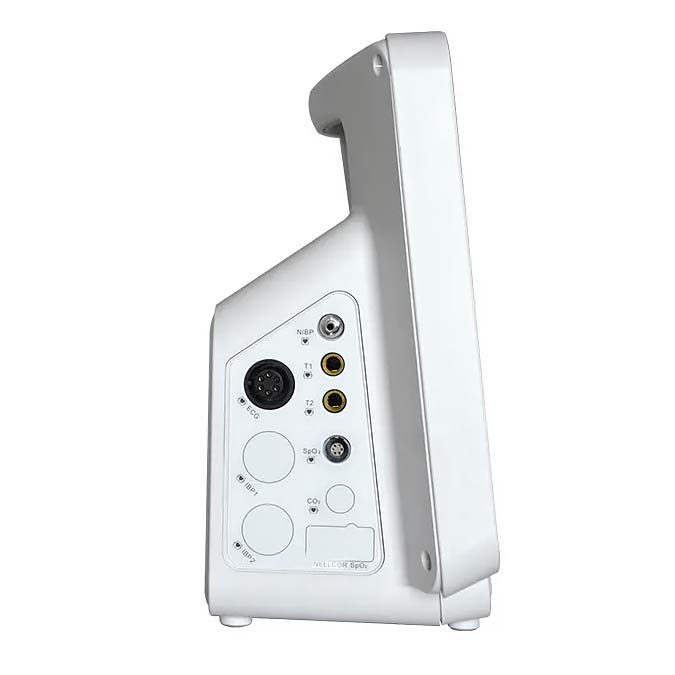

8000D Patient Monitor with Touch Screen - Image 2

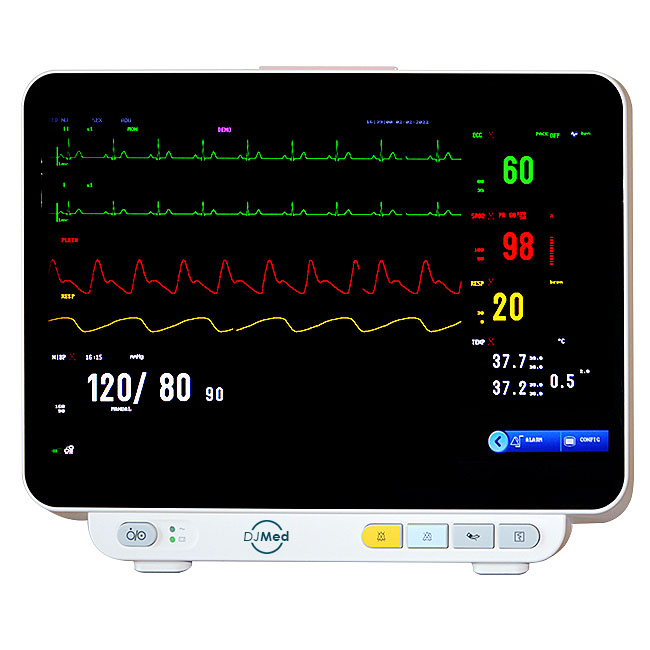

8000D Patient Monitor with Touch Screen - Image 3

8000D Patient Monitor with Touch Screen

$1,699.00

14″ Multi-parameter Patient Monitor with touch screen, TEMP, SpO2, NIBP, 5-lead ECG

Multi-parameter Patient Monitor 14 Touch is portable and can be used in hospital ICUs and CCUs, operating rooms, clinics, and for in-home patients.

This is the ideal monitor when patient transport is required, either within your facility or by ambulance. High cost performance ratio that provides healthcare teams adequate and accurate information they need at the patient’s bedside.

Wide screen at 14” with high resolution display. A built in long life lithium battery for convenient patient transfer and emergency power backup.



  • Fast Shipping: Most metro orders are delivered within 1-4 working days.
  • Trusted Australian, Based & Owned: Your order is shipped from an Australian warehouse.
  • 100% Secure Shopping: Sitewide SSL encryption keeps your checkout safe.

NDIS Order Form

Category:

Description

Clinicians need to respond swiftly to rapid changes in their patient’s condition. Having a highly reliable, versatile patient monitoring solution on hand saves precious time in determining the best course of care.

HIGH QUALITY PERFORMANCE: Provides quick and stable performance with high precision and accuracy in all parameters. Equipped with a long life battery that can prolong quality performance.

LIGHTWEIGHT. Coming in at 4.1 kg, this device is convenient for transport and set-up. Patient monitor is sturdy and may be used in any setting where patient monitoring is vital.

EXCELLENT DISPLAY. With a 14” screen, high resolution and large font display, there is easy visibility of parameters’ results. Excellent readability of the waveform data and numbers leads to accurate monitoring.

USER-FRIENDLY. Device is easy to use and easy to set-up, especially for those patients that are in-home monitoring. Equipped as a touch screen, users can navigate easily through the various parameters, saving time and improving patient care.

ALL AGES: Device can be used for new-borns, children and adults. Normal values of the different parameters for each age group are set, with an accompanying alarm when critical values are reached.

Additional information

Display

14” colour TFT screen
Alarm

Three Level: Low, medium and high
Indication: Auditory and visual
Setup: Default and custom
Silence: All alarms can be silenced
Volume: 45-85 dB @ 1 meter
Pulse Rate

Measure/alarm range: 20 ~ 300bpm
Resolution: 1bpm
Accuracy: ± 3bpm
SpO2

Measurement range: 0 ~ 100% (resolution: 1%)
Accuracy: 70% ~ 100% ± 2% (40% ~ 69% ± 3%)
NIBP

Method: Oscillometry
Measure mode: Manual, Auto, STAT
Measure interval in auto mode:
1~5/10/15/30/60/90/120/180/240/480min
Measure period in STAT mode: 5min
Pulse rate range: 40 ~ 240bpmMeasure & alarm range: Adult
SYS 40 ~ 280mmHg
DIA 10 ~ 220mmHg
MEAN 20 ~ 240mmHg
Measure & alarm range: Paediatric

SYS 40 ~ 220mmHg
DIA 10 ~ 160mmHg
MEAN 20 ~ 170mmHg
Measure & alarm range: Neonatal

SYS 40 ~ 135mmHg
DIA 10 ~ 100mmHg
MEAN 20 ~ 110mmHg
Static pressure measurement

Range: 0 ~ 300mmHg
Accuracy: ± 3mmHg
Resolution: 1mmHg Accuracy:
Max. Mean Error: ± 5mmHg
Max. Standard Deviation: 8mmHg
Overpressure protection:

Adult 300mmHg
Paediatric 240mmHg
Neonatal 150mmHg
ECG

5 Leads: RA, LA, LL, RL, V
Lead mode: I,II, III, AVR, AVL, AVF, V
Gain: × 1.25mm/mV,2.5mm/mV,
5.0mm/mV, 10mm/mV,
20mm/mV (error ≤ 5%)
Sweep speed: 6.25mm/s,12.5mm/s,25mm/s,
50mm/s (error ≤ ± 10%)
Bandwidth: Surgery 1 ~ 25 Hz
Monitor 0.5 ~ 40 Hz
Diagnostic 0.05 ~ 130 Hz
Sensitivity: >200 μ V P-P
CMRR: ≥ 112dB
Differential Input Impedance: >5M
ohm Electrode Offset Potential: ±300mV
Polarization Voltage: ≥ ± 500mV
Input Impedance: ≥ 5 M
Calibration Voltage: 1mV ± 5%
Temp

2 channel
Measure & alarm range: 0 ~ 50 C°
Resolution: 0.1 C°
Accuracy (no sensor): ±0.1 C° (0~50 C°)
Data storage

Trend diagram/table: 720h
NIBP review: 10000 events
Wave review: 12h
Alarm review: 200 alarm events
Support drug concentration titration analysis
Weight

4.1 kg
Power

AC: 230V, 50Hz
DC: Built-in rechargeable battery
Battery: 11.1V 24wh Li-ion battery (2+ hours on full charge, 5 min low battery alarm)
What is included

14″ Patient Monitor with Touch Screen
Power cable
Ground cable
User’s Manual
SpO2 sensor
Blood pressure cuff (NIBP), adult size
NIBP connection tubbing
ECG cable
Temperature probe (for Temperature)
